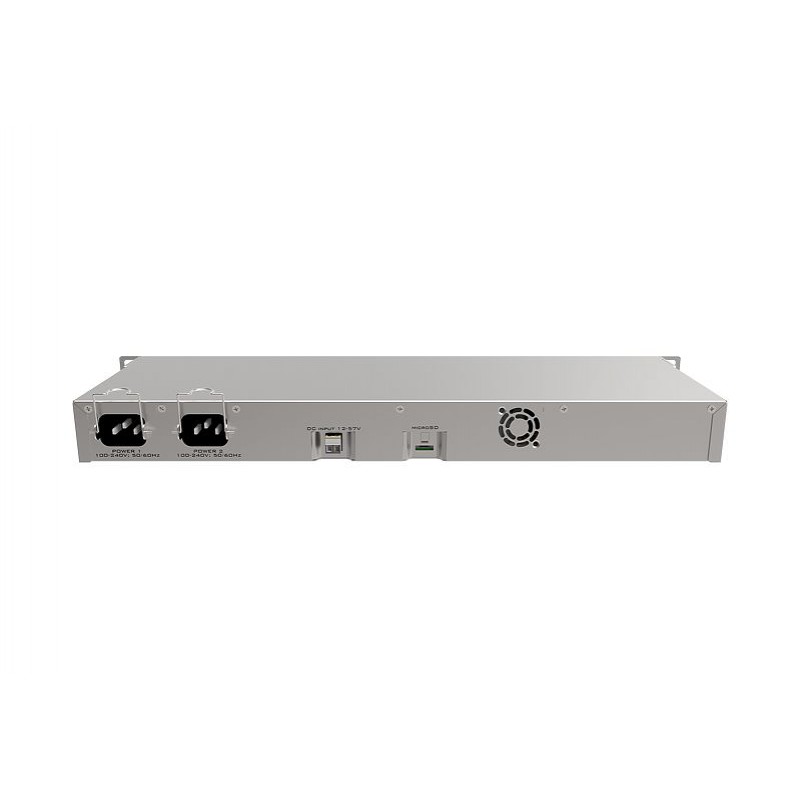

ล่าสุด! MikroTik รุ่น RB1100AHx4 Dude Edition ซีพียู 4 cores x 1.4 GHz รองรับ SATAและM.2 (มีM.2มาให้ 60GB) พร้อมชุด Power supple แบบ Dual มี Chip เพิ่มประสิทธิภาพ IPSec

Ethernet test results

RB1100Dx4 AL21400 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 606.5 7,365.3 1,736.4 7,112.3 5,509.7 2,821.0
Bridging 25 bridge filter rules 606.5 7,365.3 1,107.8 4,537.5 1,153.2 590.4
Routing none (fast path) 606.5 7,365.3 1,736.4 7,112.3 5,092.3 2,607.3
Routing 25 simple queues 606.5 7,365.3 933.6 3,824.0 960.3 491.7
Routing 25 ip filter rules 543.7 6,602.7 561.8 2,301.1 564.6 289.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB1100Dx4 AL21400 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 140.8 1577.0 141.2 578.4 139.9 71.6
256 tunnels AES-128-CBC + SHA1 192.7 2158.2 200.5 821.2 203.4 104.1
256 tunnels AES-128-CBC + SHA256 192.4 2154.9 200.5 821.2 203.4 104.1
256 tunnels AES-256-CBC + SHA1 180.0 2016.0 188.2 770.9 190.3 97.4
256 tunnels AES-256-CBC + SHA256 180.0 2016.0 188.2 770.9 190.3 97.4
256 tunnels AES-128-GCM 192.7 2158.2 202.2 828.2 203.4 104.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

Specifications
CPU nominal frequency 1.4 GHz
Dimensions 444 x 148 x 47 mm
License level 6
Operating System RouterOS
Product code RB1100Dx4
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Architecture ARM 32bit
CPU AL21400
CPU core count 4
Powering
2-pin terminal input Voltage -48, 20-57 V
Max power consumption 33 W
Max power consumption without attachments 25 W
Number of AC inputs 2
Number of DC inputs 2 (2-pin terminal, PoE-IN)
PoE in 802.3af/at
PoE in input Voltage 20-57 V
Ethernet
10/100/1000 Ethernet ports 13
Peripherals
Extended storage 60GB M.2 SSD included
M.2 slots 2
Memory card type microSD
Memory Cards 1
SATA ports 2x SATA3
Serial port RS232
Other
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
  • Brand: MikroTik
  • MikroTik รุ่น RB1100AHx4 Dude Edition ซีพียู 4 cores x 1.4 GHz รองรับ SATAและM.2 (มีM.2มาให้ 60GB) พร้อมชุด Power supple แบบ Dual มี Chip เพิ่มประสิทธิภาพ IPSec

  • Availability: In Stock
  • 14,311.25 บาท
  • Ex Tax: 13,375.00 บาท

สั่งซื้อวันนี้จัดส่งฟรี!

เฉพาะทางไปรษณีย์เท่านั้น

Tags: RB1100AHx4 Dude Edition, RB1100Dx4
