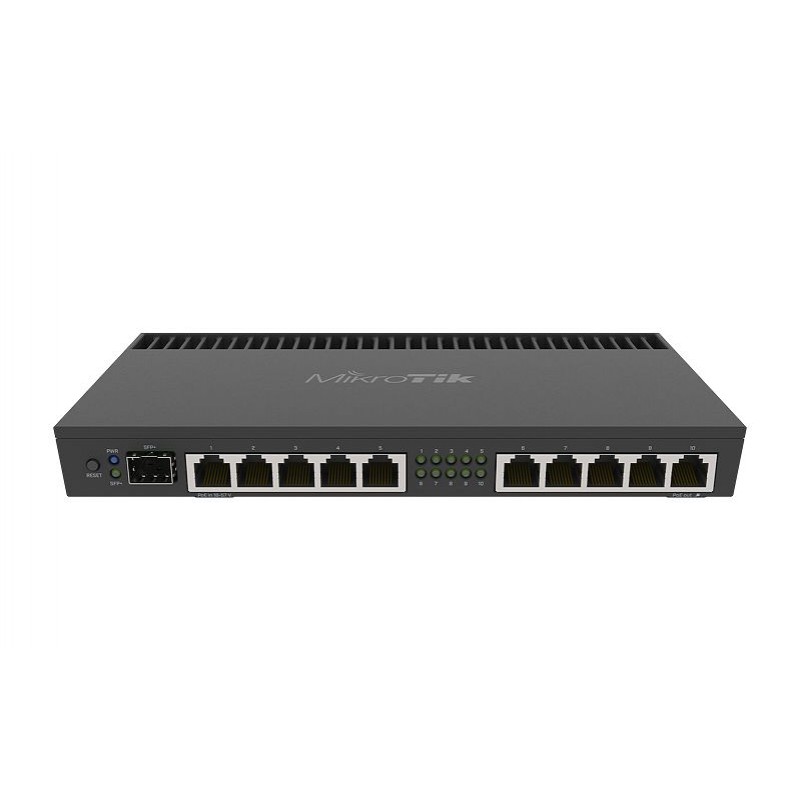

ล่าสุด! MikroTik รุ่น RB4011iGS+RM ซีพียู 4 cores x 1.4 GHz แรม 1GB พอร์ต LAN แบบ Gigabit  พร้อม SFP 10G รองรับ IPsec hardware acceleration

Ethernet test results

RB4011iGS+RM AL21400 1G/S+ all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 806,4 9,792.9 2312,9 9,473.6 5509,7 2,821.0
Bridging 25 bridge filter rules 806,4 9,792.9 1037,4 4,249.2 1153,2 590.4
Routing none (fast path) 806,4 9,792.9 1923,3 7,877.8 5092,3 2,607.3
Routing 25 simple queues 806,4 9,792.9 1046,6 4,286.9 960,3 491.7
Routing 25 ip filter rules 593,7 7,209.9 625,2 2,560.8 564,6 289.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

IPsec test results

RB4011iGS+RM AL21400 IPsec throughput
Mode Configuration 1400 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Single tunnel AES-128-CBC + SHA1 140.8 1577.0 141.2 578.4 139.9 71.6
256 tunnels AES-128-CBC + SHA1 192.7 2158.2 200.5 821.2 203.4 104.1
256 tunnels AES-128-CBC + SHA256 192.4 2154.9 200.5 821.2 203.4 104.1
256 tunnels AES-256-CBC + SHA1 180.0 2016.0 188.2 770.9 190.3 97.4
256 tunnels AES-256-CBC + SHA256 180.0 2016.0 188.2 770.9 190.3 97.4
256 tunnels AES-128-GCM 192.7 2158.2 202.2 828.2 203.4 104.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1400 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

Specifications
CPU nominal frequency 1400 MHz
Dimensions 228 x 120 x 30 mm
License level 5
Operating System RouterOS
Product code RB4011iGS+RM
Size of RAM 1 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Architecture ARM 32bit
CPU AL21400
CPU core count 4
Powering
DC jack input Voltage 12-57 V
Max out per port output (input > 30 V) 400 mA
Max out per port output (input < 30 V) 600 mA
Max power consumption 33 W
Max power consumption without attachments 18 W
Max total out (A) 600 mA
Number of DC inputs 2 (DC jack, PoE-IN)
PoE in Passive PoE
PoE in input Voltage 18-57 V
PoE out Passive PoE up to 57V
Ethernet
10/100/1000 Ethernet ports 10
Fiber
SFP+ ports 1
Peripherals
Serial port RJ45
Other
PCB temperature monitor Yes
Voltage Monitor Yes
  • Brand: MikroTik
  • MikroTik รุ่น RB4011iGS+RM ซีพียู 4 cores x 1.4 GHz แรม 1GB พอร์ต LAN แบบ Gigabit พร้อม SFP 10G รองรับ IPsec hardware acceleration

  • Availability: In Stock
  • 8,399.50 บาท
  • Ex Tax: 7,850.00 บาท

สั่งซื้อวันนี้จัดส่งฟรี!

เฉพาะทางไปรษณีย์เท่านั้น

Tags: RB4011iGS+RM

-->
